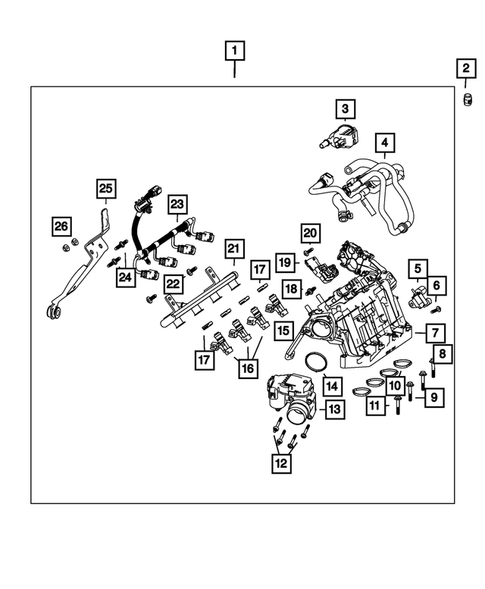

Manifolds and Vacuum Fittings for 2014 Fiat 500
No.
Part # / Description / Price
Price
1
Intake Manifold
Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: With Long Wiring Pig Tail For Purge Control Valve.
2
4
MSRP $477.00 CAD
$429.30 CAD
5
Purge Control Valve, Vacuum Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $149.00 CAD
$134.10 CAD
MSRP $149.00 CAD
$134.10 CAD
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00x16.00. Fuel Rail To Intake Manifold
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M7X1.00X42.00. Intake Manifold To Cylinder Head Cover
MSRP $3.40 CAD
$3.06 CAD
MSRP $3.40 CAD
$3.06 CAD
9
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X30.00. Intake Manifold To Cylinder Head Cover
10
Intake Manifold Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $33.90 CAD
$30.51 CAD
MSRP $33.90 CAD
$30.51 CAD
11
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-Spd C510 Manual Transmission. 6-SPD AISIN F21-250 HD AUTO TRANS.
Description: M6x1.00x16.00. Engine Cover Bracket To Front Cover
12
Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00. Electronic Throttle Body To Intake Manifold
14
Throttle Body Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $27.25 CAD
$24.53 CAD
MSRP $27.25 CAD
$24.53 CAD
16
MSRP $232.00 CAD
$208.80 CAD
17
Fuel Injector Clip Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $20.95 CAD
$18.86 CAD
MSRP $20.95 CAD
$18.86 CAD
18
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M7X1.00X32.00. Intake Manifold To Cylinder Head Cover
19
Map Sensor Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: MAP
MSRP $141.00 CAD
$126.90 CAD
MSRP $141.00 CAD
$126.90 CAD
20
Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M5X18. Map Sensor To Intake Manifold
23
Fuel Rail Wiring Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $140.00 CAD
$126.00 CAD
MSRP $140.00 CAD
$126.00 CAD
24
Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00. Intake Manifold To Support Bracket
25
Intake Manifold Bracket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Up To 11/17/2014
26
Hex Flange Locking Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00. Turbocharger Heat Shield Isolator To Turbocharger
MSRP $2.85 CAD
$2.57 CAD
MSRP $2.85 CAD
$2.57 CAD

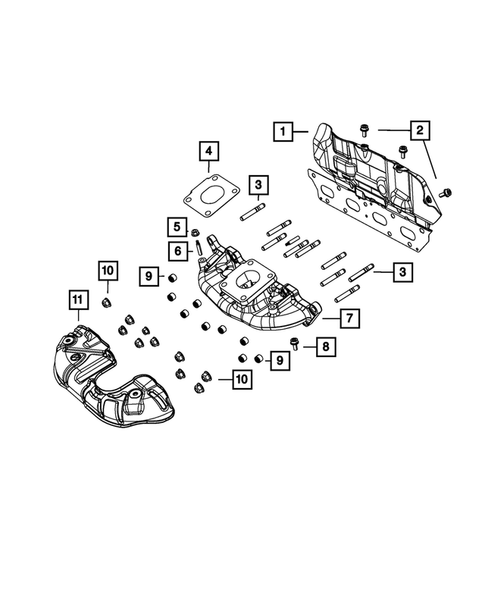

No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: EXHAUST MANIFOLD
MSRP $90.00 CAD
$81.00 CAD
MSRP $90.00 CAD
$81.00 CAD
2
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X.00X14.00. Exhaust Manifold Gasket To Turbocharger Heat Shield
3
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M8X1.25X54.00. Exhaust Manifold To Cylinder Head
4
Turbocharger Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $36.35 CAD
$32.72 CAD
MSRP $36.35 CAD
$32.72 CAD
5
Hex Flange Locking Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00. Turbocharger Heat Shield Isolator To Turbocharger
MSRP $2.85 CAD
$2.57 CAD
MSRP $2.85 CAD
$2.57 CAD
6
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X1.00X32.50. Heat Shield To Exhaust Manifold
MSRP $4.85 CAD
$4.37 CAD
MSRP $4.85 CAD
$4.37 CAD
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X1.00X13.00. Turbocharger Heat Shield To Turbocharger
MSRP $14.75 CAD
$13.28 CAD
MSRP $14.75 CAD
$13.28 CAD
9
Spacer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Exhaust Manifold To Cylinder Head
MSRP $11.25 CAD
$10.13 CAD
MSRP $11.25 CAD
$10.13 CAD
10
Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M8x1.25. Turbocharger And Heat Shield To Cylinder Head
MSRP $6.80 CAD
$6.12 CAD
MSRP $6.80 CAD
$6.12 CAD
11
Exhaust Manifold Shield Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: AIR FUEL EMISSIONS EXHA
