Engine Oiling, Oil Pan and Indicator (Dipstick) for 2014 Fiat 500
No.
Part # / Description / Price
Price
1

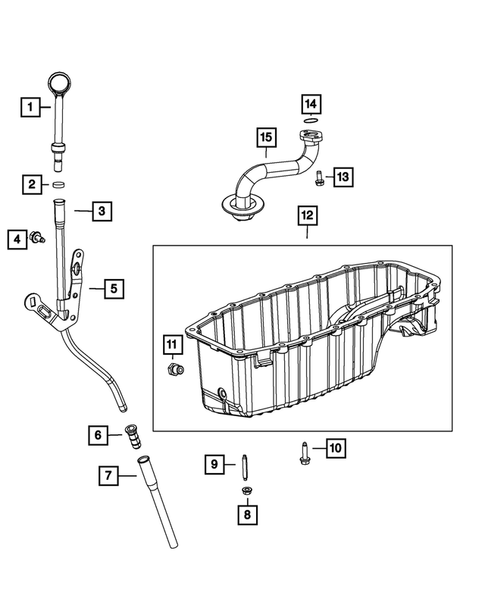

Engine Oil Level Indicator
Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: ENGINE OIL LEVEL
3
Engine Oil Indicator Tube, Upper Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Upper.
4
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00x14.00. Tube To Camshaft Housing
MSRP $2.95 CAD
$2.66 CAD
MSRP $2.95 CAD
$2.66 CAD
6
Engine Oil Indicator Tube Seal Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: BROCHURE DISPLAY EQUIPM
MSRP $11.60 CAD
$10.44 CAD
MSRP $11.60 CAD
$10.44 CAD
7
Engine Oil Indicator Tube, Lower Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Lower.
8
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00. Oil Pan To Oil Pump
10
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X25.00. Lower Timing Cover To Oil Pump
11
Oil Drain Plug Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-Spd C510 Manual Transmission. 6-SPD AISIN F21-250 HD AUTO TRANS.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $21.40 CAD
$19.26 CAD
MSRP $21.40 CAD
$19.26 CAD
12
Engine Oil Pan Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. Transmissions: 5-Spd C510 Manual Transmission.
12
Engine Oil Pan Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. Transmissions: 5-Spd C510 Manual Transmission.
13
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Engine Oil Pickup To Oil Pump
14
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
15
Oil Pickup Tube Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
No.
Part # / Description / Price
Price
1

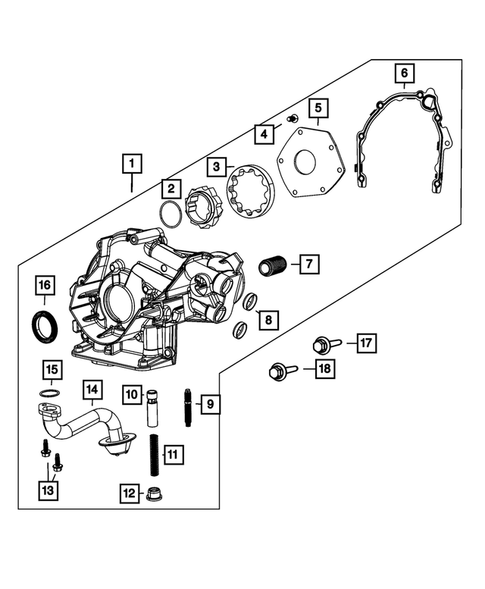

Engine Oil Pump Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $419.00 CAD
$377.10 CAD
MSRP $419.00 CAD
$377.10 CAD
6
Oil Pump Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
13
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Engine Oil Pickup To Oil Pump
14
Oil Pickup Tube Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
15
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
17
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X22.00. Oil Pump To Cylinder Block
17
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X22.00. Oil Pump To Cylinder Block
MSRP $5.75 CAD
$5.18 CAD
MSRP $5.75 CAD
$5.18 CAD
18
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X32.00. Oil Pump To Lower Cylinder Block
MSRP $6.90 CAD
$6.21 CAD
MSRP $6.90 CAD
$6.21 CAD
No.
Part # / Description / Price
Price
1

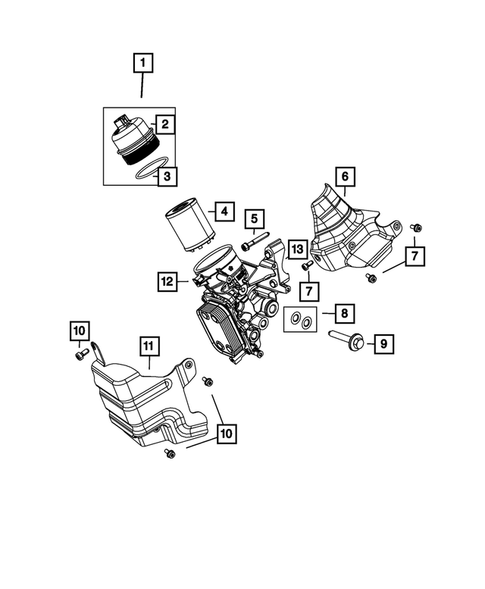

Oil Filter Housing Cap Kit Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Includes O-Ring
MSRP $83.25 CAD
$74.93 CAD
MSRP $83.25 CAD
$74.93 CAD
4
Engine Oil Filter Kit Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Includes Oil Filter Cap O-Ring
MSRP $23.10 CAD
$20.79 CAD
MSRP $23.10 CAD
$20.79 CAD
5
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M10X1.25X50.00. Oil Filter Adapter
7
Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-Spd C510 Manual Transmission.
Description: Upper Guard To Oil Filter Adapter
9
Oil Filter Adapter Connector Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $54.45 CAD
$49.01 CAD
MSRP $54.45 CAD
$49.01 CAD
12
Engine Oil Filter Adapter Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Complete
MSRP $401.00 CAD
$360.90 CAD
MSRP $401.00 CAD
$360.90 CAD
13
Oil Filter Adapter Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
MSRP $22.50 CAD
$20.25 CAD
MSRP $22.50 CAD
$20.25 CAD
