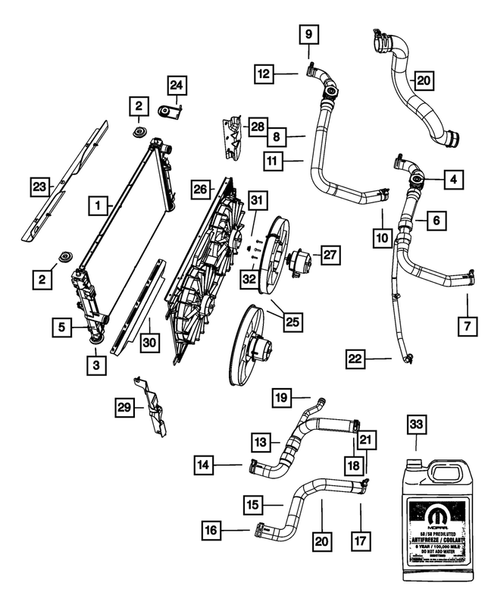

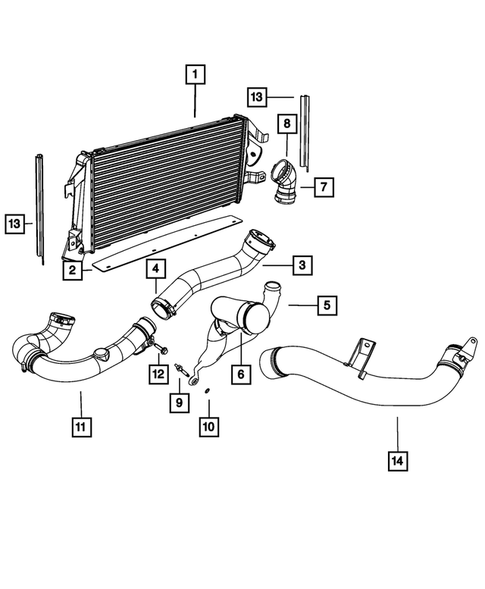

Radiator and Related Parts; Charge Air Cooler for 2012 Dodge Caliber
No.
Part # / Description / Price
Price
1
Engine Cooling Radiator
Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
MSRP $457.00 CAD
$411.30 CAD
MSRP $457.00 CAD
$411.30 CAD
3
Radiator Isolator Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Lower
4
Radiator Cap Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: [ nmc=nms]. Radiator. Tank. 04596198.
MSRP $51.10 CAD
$45.99 CAD
MSRP $51.10 CAD
$45.99 CAD
5
Radiator Draincock Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: with O Ring
MSRP $34.70 CAD
$31.23 CAD
MSRP $34.70 CAD
$31.23 CAD
6
Radiator Inlet Hose Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Radiator Inlet Hose Assembly. Includes Clamp and Cap
MSRP $123.00 CAD
$110.70 CAD
MSRP $123.00 CAD
$110.70 CAD
7
Radiator Outlet Hose And Clamp Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: With 2 Clamps. With 2 Clamps
8
Radiator Inlet Hose Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Radiator Inlet Hose Assembly. [X87+NHA]
9
Hose Clamp Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 19X15
MSRP $6.90 CAD
$6.21 CAD
MSRP $6.90 CAD
$6.21 CAD
13
Radiator Outlet Hose Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Radiator Outlet Hose Assembly
14
Hose Clamp Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 44X15. Outlet hose
18
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $13.65 CAD
$12.29 CAD
MSRP $13.65 CAD
$12.29 CAD
20
Radiator Outlet Hose Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Radiator Outlet Hose Assembly. [X87+NHA]
MSRP $414.00 CAD
$372.60 CAD
MSRP $414.00 CAD
$372.60 CAD
23
Radiator Upper Seal Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
24
Cooling Module Bracket, Right & Left, Upper Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: Upper.
25
Radiator Cooling Fan Module Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes fans, motors and shroud
26
Radiator Cooling Fan Module Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes fans, motors and shroud
MSRP $324.00 CAD
$291.60 CAD
MSRP $324.00 CAD
$291.60 CAD
27
Radiator Cooling Fan Module Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Includes fans, motors and shroud
MSRP $302.00 CAD
$271.80 CAD
MSRP $302.00 CAD
$271.80 CAD
28
Radiator Seal, Right Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
29
Radiator Seal, Left Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
30
Radiator Seal, Lower Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
31
Fan Module Retaining Nut Mopar
Mopar Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: Fan Module Retaining
MSRP $11.15 CAD
$10.04 CAD
MSRP $11.15 CAD
$10.04 CAD
32
Hex Head Tapping Screw Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONTINUOUSLY VARIABLE TRANSAXLE II.
Description: M6x23. Cooling Fan Attaching
33
Coolant Antifreeze 2 Mopar
Mopar Description: Gallon. Standard MS-9769; [128 Fluid Ounces] Minimum Ship Quantity of 6 gallons.. Concentrate
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
1

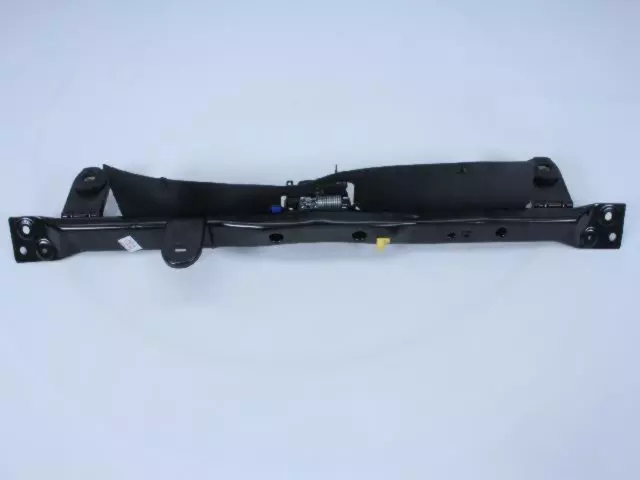

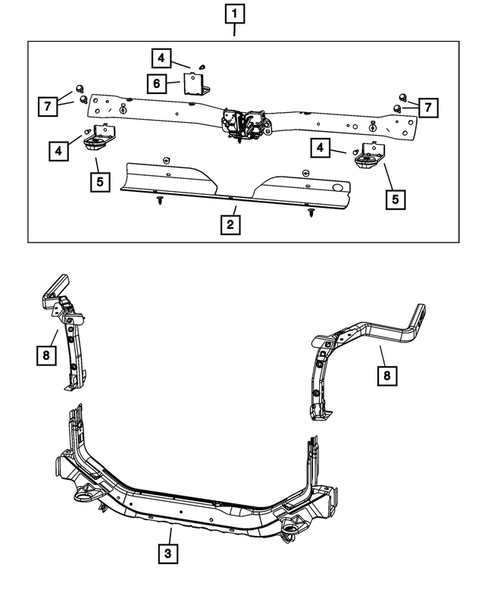

Radiator Closure Panel Crossmember Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
1
Radiator Closure Panel Crossmember Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: Upper. Contains Brackets, Latch, Seal and Clip
2
Radiator Upper Seal Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
3
Front Side Rail Crossmember, Lower Mopar
Mopar Description: Bracket Attaching
MSRP $603.00 CAD
$542.70 CAD
MSRP $603.00 CAD
$542.70 CAD
4
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: M6x1x20. Starting Mid Year Production Run 01/09/2022 For Model Year 2022 And After The Decretive Engine Cover Was Was Cancelled And Removed In Production. Engine Cover Bracket To Intake Manifold
MSRP $12.30 CAD
$11.07 CAD
MSRP $12.30 CAD
$11.07 CAD
5
Cooling Module Bracket, Right & Left, Upper Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.2L I4 SINGLE TD OM651 ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: Upper.
6
Cooling Module Bracket Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE.
Description: Cooling module hose
7
Hex Head Bolt And Coned Washer Mopar
Mopar Description: M8x1.25x25. Bracket Attaching. Upper Radiator Support Crossmember To Body Side Rail
MSRP $7.30 CAD
$6.57 CAD
MSRP $7.30 CAD
$6.57 CAD
No.
Part # / Description / Price
Price
12
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.2L I4 SINGLE TD OM651 ENGINE. Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED MANUAL AISIN BG6 TRANS.
Description: M8X1.25X40.00. Outer Cover And Bracket To Inner Cover
MSRP $8.90 CAD
$8.01 CAD
MSRP $8.90 CAD
$8.01 CAD
