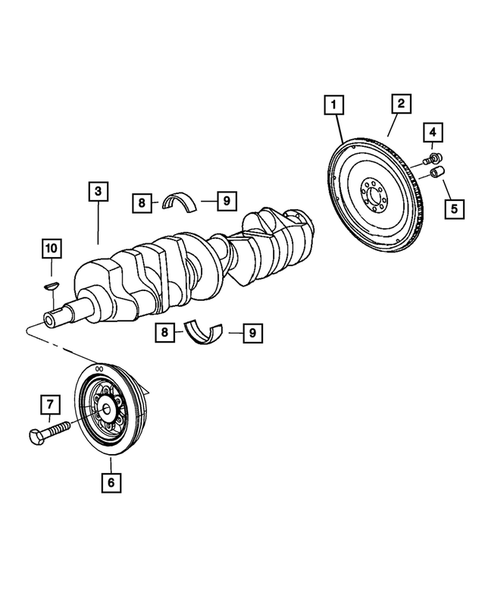

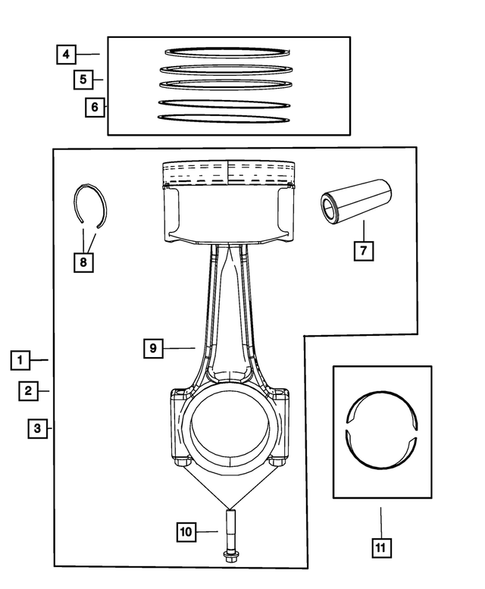

Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2009 Dodge Viper
No.
Part # / Description / Price
Price
1
Engine Piston Pin & Rod Package, Left
Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard. Cylinders 1,3,5,7, And 9
1
Engine Piston Pin & Rod Package, Right Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard. Cylinders 2,4,6,8, And 10
2
Piston Pin And Rod, Right Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .010" O/S. Cylinders 2,4,6,8, And 10
2
Piston Pin And Rod, Left Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .010" O/S. Cylinders 1,3,5,7, And 9
3
Piston Pin And Rod, Left Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .020" O/S. Cylinders 1,3,5,7, And 9
3
Piston Pin And Rod, Right Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .020" O/S. Cylinders 2,4,6,8, And 10
4
Piston Ring Package Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard Size. One Package Is For Complete Engine [10 Pistons]
10
Connecting Rod Bolt, Right Side Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Cylinders 2-4-6-8-10
MSRP $43.00 CAD
$38.70 CAD
MSRP $43.00 CAD
$38.70 CAD
11
Connecting Rod Bearing Package Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard. See Note
MSRP $12.30 CAD
$11.07 CAD
MSRP $12.30 CAD
$11.07 CAD
No.
Part # / Description / Price
Price
2
Flywheel Ring Gear Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Also Serviced In Item 1 Flywheel
MSRP $338.00 CAD
$304.20 CAD
MSRP $338.00 CAD
$304.20 CAD
4
Hex Head Locking Bolt, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: M10x1.00x30.00. Flywheel To Crankshaft
MSRP $6.55 CAD
$5.90 CAD
MSRP $6.55 CAD
$5.90 CAD
5
MSRP $68.60 CAD
$61.74 CAD
7
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: .750-16x2.250. Vibration Damper To Crankshaft
8
Crankshaft Thrust Bearing Package Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard Size. Thrust Bearing. Contains 1 Upper And 1 Lower Bearing
9
Crankshaft Bearing Package Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: Standard. Main Bearing. [1,2,4,5,6] Magenta standard
10
Woodruff Key Mopar
Mopar Notes: Engines: 8.4L V10 SFI ENGINE.
Description: [.188x.780]. Crankshaft Sprocket
