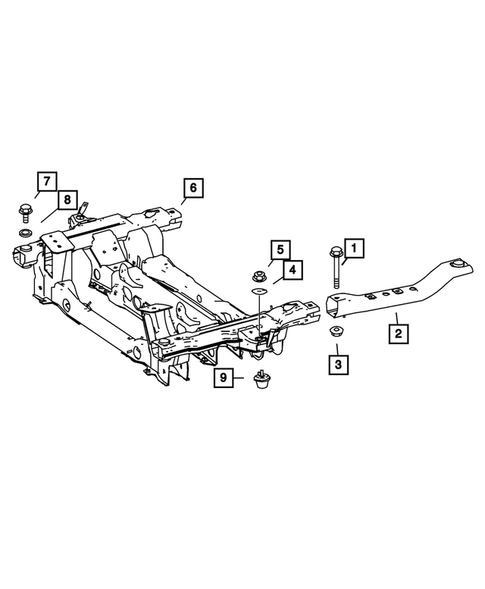

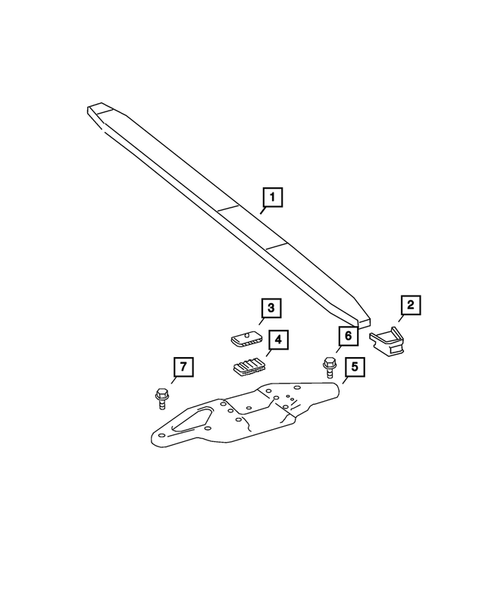

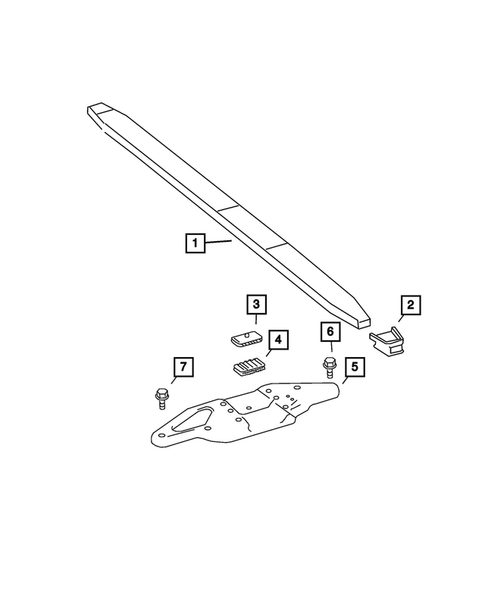

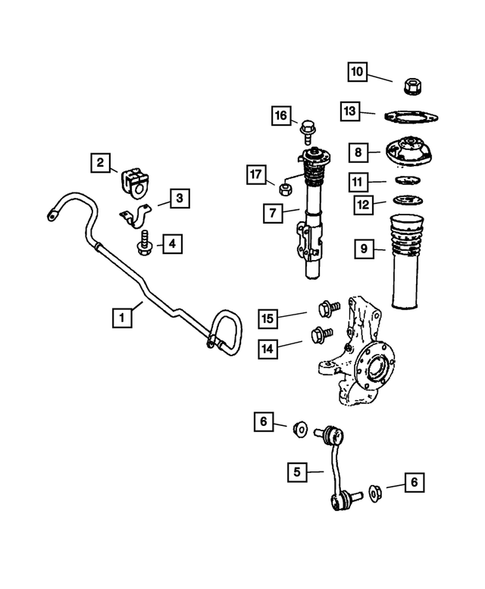

Front Suspension, Strut and Cradle for 2009 Dodge Sprinter 2500
No.
Part # / Description / Price
Price
2
Stabilizer Bar Grommet Retainer
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Torsion Bar
2
Bushing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: NONE
MSRP $37.15 CAD
$33.44 CAD
MSRP $37.15 CAD
$33.44 CAD
4
Hex Flange Head Bolt, Mounting, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M10X1.50X20.00. Engine Mount Bracket To Cylinder Block
6
Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [M12x1.5] Torsion Bar to Rod
8
Shock Absorber Bushing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Shockabsorber Bearing & Bushing
11
Shock Absorber Bushing, Upper Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Rebound Stop
12
Shock Absorber Bushing, Lower Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Rebound Stop
14
Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Camber Adjustment / Bolt MUST BE REPLACED AT EVERY ADJUSTMENT.
15
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Shock Absorber to Steering Knuckle,Bottom
17
No.
Part # / Description / Price
Price
2
Stabilizer Bar Grommet Retainer Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Torsion Bar
2
Bushing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: NONE
MSRP $37.15 CAD
$33.44 CAD
MSRP $37.15 CAD
$33.44 CAD
4
Hex Flange Head Bolt, Mounting, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M10X1.50X20.00. Engine Mount Bracket To Cylinder Block
8
Shock Absorber Bushing Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Shockabsorber Bearing & Bushing
11
Shock Absorber Bushing, Upper Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Rebound Stop
12
Shock Absorber Bushing, Lower Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Rebound Stop
14
Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Camber Adjustment / Bolt MUST BE REPLACED AT EVERY ADJUSTMENT.
15
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Shock Absorber to Steering Knuckle,Bottom
17
No.
Part # / Description / Price
Price
1
Front Knuckle, Right Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: See Note:
1
Front Knuckle, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: See Note:
5
Front Wheelhouse Panel, Right Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Up Travel Stop Plate
5
Front Wheelhouse Panel, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Up Travel Stop Plate
8
Ball Joint Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Lower Ball Joint To Steering Knuckle
9
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Plate To Transverse Control Arm [M10x35]
10
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Plate To Transverse Control Arm [M12x1.5x60]
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M14x1.50x90.00. Rear Diff Assembly to Rear Crossmember Roll Mount
MSRP $27.00 CAD
$24.30 CAD
MSRP $27.00 CAD
$24.30 CAD
5
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M8X1.25
6
Front Suspension Cradle Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: FRONT SUSPENSION
No.
Part # / Description / Price
Price
6
Front Wheelhouse Panel, Left Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Up Travel Stop Plate
6
Front Wheelhouse Panel, Right Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Up Travel Stop Plate
9
Ball Joint Nut Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Lower Ball Joint To Steering Knuckle
10
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Plate To Transverse Control Arm [M10x35]
11
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Plate To Transverse Control Arm [M12x1.5x60]
14
Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Mounting to Longitundinal Member Bottom M6x16
No.
Part # / Description / Price
Price
6
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Differential Cover
7
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Plate To Body [M12x1.5x40-12.9MM]
No.
Part # / Description / Price
Price
6
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Differential Cover
7
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Plate To Body [M12x1.5x40-12.9MM]
