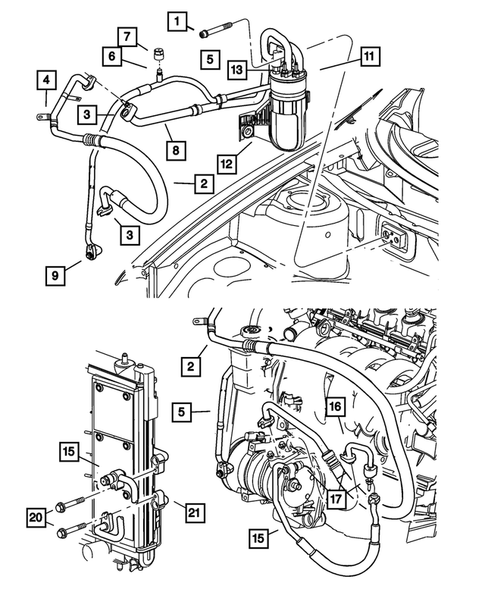

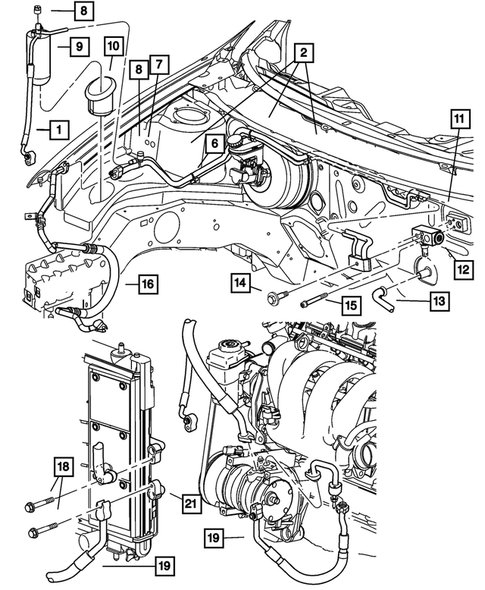

Air Conditioner and Heater Plumbing for 2002 Dodge Neon
No.
Part # / Description / Price
Price
N/A
A/c Line Valve Core
Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: A C LINE
MSRP $50.80 CAD
$45.72 CAD
MSRP $50.80 CAD
$45.72 CAD
N/A
A/c Suction Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: To Compressor
N/A
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Up to 01-09-2002
N/A
High Pressure O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: 3/8 inch
2
A/c Suction Line, Manual Transmission Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 5-SPEED MANUAL T350 TRANSMISSION.
Description: A C SUCTION
2
A/c Suction Line, Automatic Transaxle Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: A C SUCTION
4
A/c Line Bracket Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
5
A/c Suction And Liquid Line Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
6
A/c Discharge Line Check Valve Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
7
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
8
A/c Suction Line Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
9
A/c Discharge Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 5-SPEED MANUAL T350 TRANSMISSION.
Description: 1/2 inch. To Drier. 1/2 Red.
11
Air Conditioning Accumulator Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
11
Air Conditioning Accumulator Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
12
Accumulator Bracket Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
13
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
15
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
15
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
16
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Jumper
20
Hex Head Screw And Washer, Mounting, Right Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: .19-16x1.00. Rear. [M6X1.00X45.00]. Timing Belt Cover To Cylinder Block
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Magneti-Marelli Offered By MOPAR, See Note.
No.
Part # / Description / Price
Price
N/A
A/c Discharge Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 5-SPEED MANUAL T350 TRANSMISSION.
Description: 1/2 inch. To Drier. 1/2 Red.
N/A
A/c Suction Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: To Compressor
N/A
High Pressure O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: 3/8 inch
8
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Up to 01-09-2002
18
Hex Head Screw And Washer, Mounting, Right Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: .19-16x1.00. Rear. [M6X1.00X45.00]. Timing Belt Cover To Cylinder Block
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Magneti-Marelli Offered By MOPAR, See Note.
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab

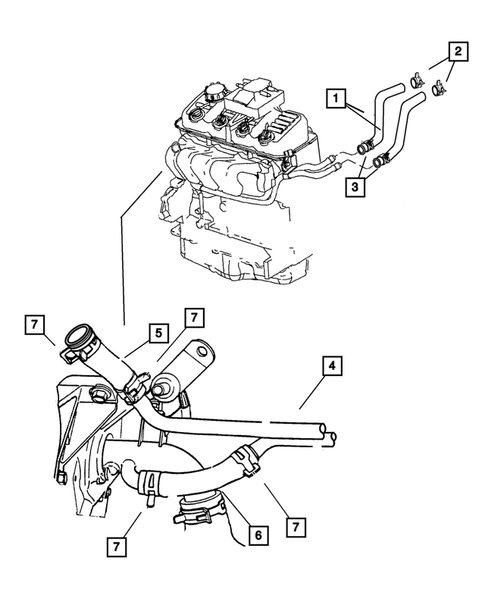

No.
Part # / Description / Price
Price
1
Heater Core To Tube Hose Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: HEATER CORE TO TUBE
1
Heater Core To Tube Hose Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
2
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $13.65 CAD
$12.29 CAD
MSRP $13.65 CAD
$12.29 CAD
4
Heater Core Tube Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
6
Heater Hose Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Tube to Pump (Serviced in Item #6)
